FLIR E53(Advanced infrared camera with 240 × 180 resolution)

The FLIR E53 is an entry-level thermal camera product of the Exx series, with excellent resolution and sensitivity, and a high cost performance. It has a resolution of 240 × 180 and provides more than 43,200 temperature measurement points, which can generate clear and vivid images, which are complemented by FLIR's MSX technology for more viewing angles.

Excellent distance coefficient ratio The FLIR E53 has an excellent distance coefficient ratio, enabling you to get the most accurate temperature readings for smaller targets at greater distances.	Features to help you troubleshoot FLIR E53 can measure temperatures up to 650 ° C, provides 3 points for temperature measurement, and can display the maximum / minimum temperature on a real-time screen in an area.	Smooth reporting FLIR E53 has a customizable working folder, a microphone for adding voice annotations, and report generation features to help simplify your daily work.

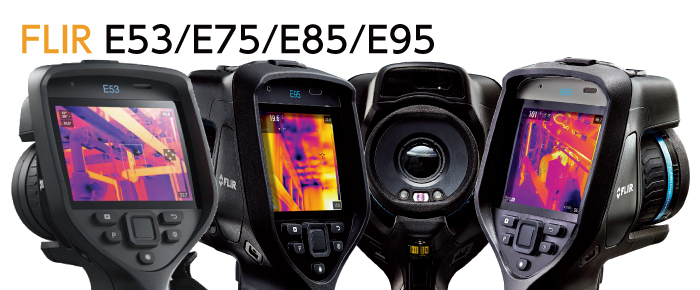

Same function as E75, E85, E95
As a member of the Exx family, E53 inherits the family's excellent genes and has the same functions as other models.
※ In terms of infrared imaging ● Equipped with 4-inch clear touch screen ● With 160 ° viewing angle ● With MSX image enhancement function ● Can detect temperature difference as low as 0.03 ° C ● Discover the point of failure
※ Connection and application ● Can be connected to mobile devices via Wi-Fi or to multimeters via METERLiNK and FLIR digital clamp meters ● Built-in voice annotations and custom work folders ● Quickly report and share images with the FLIR Tools mobile app ● Simplify the daily work of users
※ In terms of design ● Using rugged, waterproof case and scratch-resistant protective glass ● Comfortable handle and convenient menu button ● Users can operate with one hand
Differences from E75, E85, E95
E53	Exx Other Products
● E53 has a resolution of 240 × 180 ● Ability to measure temperatures as low as -20 ° C and as high as 650 ° C	? Up to 464 × 348 resolution ? and maximum temperature measurement up to 1500 ° C
●E53 with fixed standard lens	?Equipped with interchangeable lens, which can cover short and long distance targets and can automatically identify and calibrate the lens
●Need to focus manually	?Not only supports manual focusing, but also laser-assisted automatic focusing
●E53's infrared image is in the center area	?Infrared image size is adjustable and movable
Although the performance of the E53 and the other three products of the Exx series are slightly different, as an entry-level product, the E53 is not only more affordable in price, but also enriches the Exx series product line and meets the needs of different users.

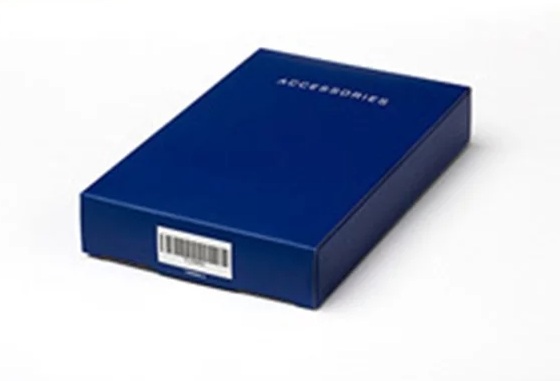

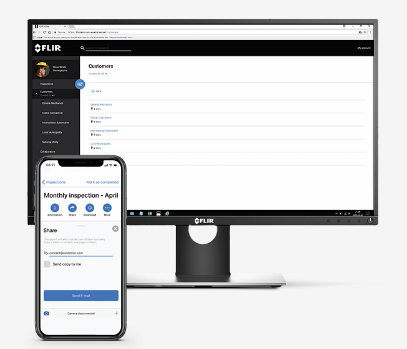

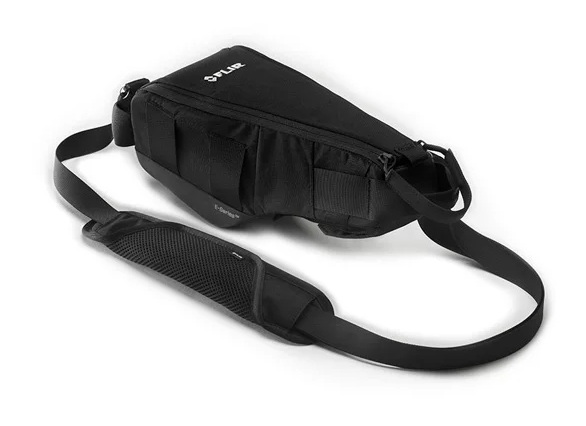

Box II	FLIR InSite application	Instrument bag
