TELS Small Length Gauge

---

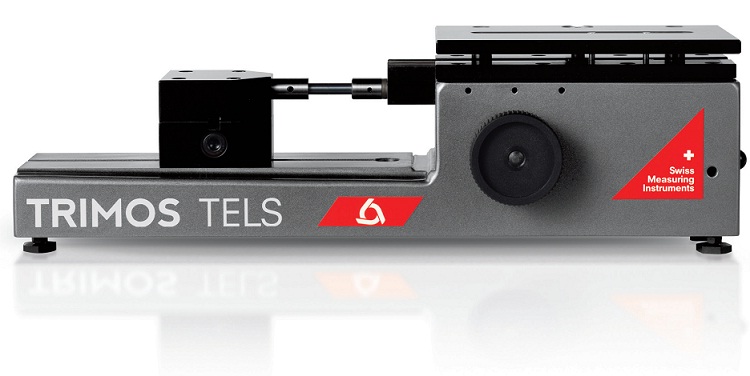

The small length measuring machine TELS is the ideal instrument for checking small size. It is part of a family of horizontal instruments.
The instrument is mainly used to check internal and external dimensions, such as ring gauges, plug gauges, threaded plug gauges, and to measure precision production parts.
Suitable for workshop environment.
All measurements can be performed using electronic probes and digital display units or simply using a dial indicator. The choice of the measurement system depends on the required accuracy.
The internal measurement range is from 10 to 100 mm and the external measurement range is from 0 to 100 mm, covering many applications. The absolute measurement range is 25 mm, and a preset setting is required to obtain the full length.
A wide range of accessories.

Sylvac display unit function

◆ Analog display ◆ Enter and display tolerance limits ◆ Preset function

◆ Measurement direction can be changed ◆ Channel selection ◆ Lock display value

◆ Lock the keyboard and unit settings ◆ Externally connect with foot pedal or computer ◆ Printing display value and static analysis

TELS instruments are provided as follows:

Instrument (depending on model)	User manual（750 50 0019 03）
Gage for external measurement (TELS50)	Grinding plate（TA-TO-301）
Measuring anvil for internal measurement (TELS10)	Test certificate

TELS Technical Parameters

Absolute measuring range	mm (in)	25(1)
Application range (external measurement)	mm (in)	100(4)
Application range (internal measurement)	mm (in)	100(4)
Maximum allowable error (according to measuring probe)	μm	1.5
Repeatability (2s)	μm	0.1
Resolution	mm (in)	0.1 ~ 0.0001 (.001÷ 00001)
Measuring force (adjustable)	N	3-8
Operating temperature	℃	+10 ~ +40
Storage temperature	℃	-10 ~ +40
Weight	Kg	15
