Measuring Dry Coating Thickness with DeltaScope FMP30

---

The DELTASCOPE series handheld dry coating thickness gauge of Helmut Fischer is available in two models the DeltaScope FMP10 and DeltaScope FMP30.
DeltaScope FMP30 coating thickness gauge is an ideal instrument for measuring non-ferromagnetic metal coatings e.g. chrome, copper, zinc, as well as paint, varnish, lacquer, powder coating, enamel or plastic coatings on ferrous base materials (F) i.e. steel and iron.
Both models are available with over 70 various high-precision exchangeable probes and offer the magnetic induction measurement method (according to DIN EN ISO 2178 & ASTM D7091).

The Deltascope FMP30 offers the same features as the DeltaScope FMP10 but features additional memory for numerous customer-specific measuring applications as well as extensive graphical and statistical evaluations.  Tolerance limits can be entered into the calibratable measuring applications and the production process can be analysed statistically.

Basic Features same as DeltaScope FMP10: ● For magnetic induction probes ● Automatic base material and probe recognition ● Easy-to-use with intuitive menu ● Large contrast-rich colour display ● Memory for up to 1,000 readings ● USB interface ● Instant measurement upon probe placement ● Audible signal with measurement acquisition ● Easy adaptation to the shape of the specimen through a zero-point correction (normalisation) ● Easy to perform corrective calibration (verification of accuracy) ● Sliding cover to protect keys against unintentional operation ● Various language settings ● Units of measurement can be switched between μm and mils Additional Features of DeltaScope FMP30: ● Application memory for up to 100 measuring applications including calibration (adjustment settings) ● Memory for up to 20,000 readings ● Allocation of readings in up to 4,000 blocks ● Date & time stamp for blocks ● Audible & visual warnings when tolerance limites are exceeded

Applicatons for coating thickness measuring

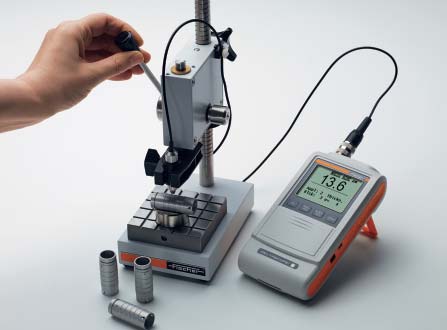

DeltaScope FMP30 is a popular handheld gauge for nondestructive coating thickness measurements. Typical fields of application of the FMP30 are:
● Paint manufacturing and processing
● Electroplating plants
● Final inspection of goods
● Anodizing plants

Standard Packing List for the DELTASCOPE FMP10 FMP30

Instrument
Short form operator’s manual, printed version
Support CD with evaluation and archiving software DataCenter, USB drivers and operator’s manual
Carrying strap
USB interface cable
Battery set
Carrying case (for FMP30 only)

Probe Selection of DeltaScope FMP30

We can offer an extensive selection of probes that are as versatile as the measurement applications of the customer.  A probe needs specific properties for each field of application for achieving best results with a high accuracy.  Over 70 probes can be connected to the DELTASCOPE FMP30 hand-held coating thickness gauge.

Contact LAB GAGES for information on probe selection.
