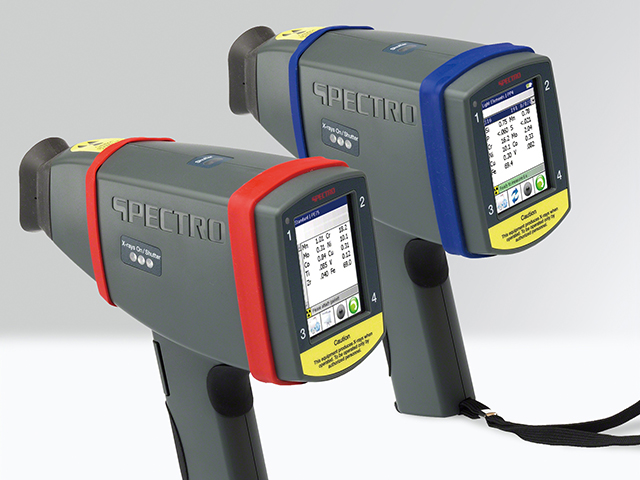

SPECTRO xSORT Handheld ED-XRF Spectrometer

The Spectro xSort XRF family can perform elemental testing and spectrochemical analysis of a variety of materials under very different conditions. These energy dispersive X-ray fluorescence devices are recognized for their ruggedness and reliability. They perform non-metal identification in seconds, and their innovative technology and design enable repeatable laboratory-grade results. Simple and friendly display and efficient ergonomic design make these instruments very easy to use. SPECTRO xSORT series spectrometers are reasonably priced and widely used, making them the best in their class.

Features of SPECTRO xSort XRF

? Sturdy tool, it only takes two seconds to analyze most alloys, and it takes only 7 seconds to identify alloys containing light elements. Standard calibration can analyze alloys and precious metals, covering 16 substrates and 46 elements
? The instrument is usually ready for measurement within 10 seconds after powering on, and the results are stored in various formats (USB drive, network or printer) in various formats simultaneously.
? Compliance testing and rapid screening of non-metal samples. The video camera is used to accurately locate samples and record measurement points.

The handheld energy dispersive X-ray fluorescence spectrometer can perform efficient element detection and spectrochemical analysis of more than 90% of metal materials under a variety of complex conditions. The SPECTRO xSORT spectrometer is characterized by its disruptive high speed, high accuracy and simple operation, making it an indispensable new tool in the integrity inspection process of facilities in many industries.

High speed

The SPECTRO xSORT spectrometer can identify most alloy metals (including gold) and determine the chemical composition of materials within 2 seconds. For alloys containing AL, Mg, Si, P, and S lightweight elements and their classification, it only takes an additional 10 seconds to complete.

High precision

In addition to the 10-second analysis time required for light element detection, the SPECTRO xSORT spectrometer can obtain laboratory-level analysis results in 2 seconds.
Users can complete hundreds or more inspections per shift, which greatly improves profitability and work efficiency.

Easy to operate

Operators using the SPECTRO xSORT spectrometer do not need to switch detection methods between different metal substrates, and do not need to rinse and dust after use. In order to facilitate on-site operation, the device is compact in structure and weighs only 1.64 kg with batteries.

SPECTRO xSORT spectrometer service and technical support

Users engaged in high-intensity on-site screening must maintain the equipment's good performance throughout the entire operation. To ensure that the SPECTRO xSORT spectrometer can achieve this goal and surpass it. SPECTRO provides AMECARE services.

SPECTRO xSORT specifications

Detector	High-resolution silicon drift detector
Excitation source	X-ray tube, rhodium target, maximum excitation voltage 50KV
Dimensions and weight (Including battery pack)	Height: 270mm Width: 93mm Depth: 230mm Weight: 1.64kg
Spectrometer control	Integrated PC with touch screen Windows Mobile 6.0 Interface protocol: Bluetooth, wireless LAN USB host / client
Sofeware	SPECTRO XRF Analyzer CE analysis software ICAL (Smart Calibration Logic) Analysis mode with ID level / level verification, classification mode (quick pass / fail evaluation) Post-processing results management of test data
Accessories (supplied)	Waterproof and shockproof instrument carrying case Holster Two batteries Charger / Power Consumable package
Option	Additional battery printer Wire / Small Sample Fixture Visual CCD camera
